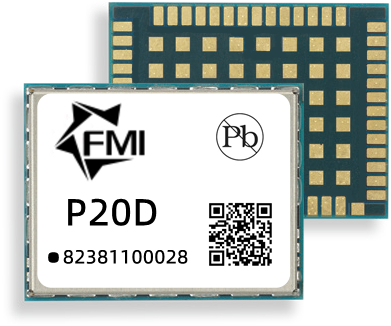

P20D is a high-precision GNSS RTK positioning and heading module. It can simultaneously track multiple frequencies of all GNSS constellations (GPS, BDS2, BDS3, GALILEO, GLONASS, QZSS), and the module can perform on-chip RTK positioning and dual-antenna heading calculation. P20D has integrated an industrial 6-axis IMU sensor that can maintain correct heading and attitude information for harsh GNSS signal reception environment.
P20D is a perfect choice for high-precision navigation and Positioning applications such as UAV, machine control, precision agriculture and marine, that demands the highest stability and integrity in heading and attitude.
● 12nm technology, most advanced in industry.
● Supports RTK between master and slave antenna for heading operation, with antenna separation as close as 5 cm
● 21 mm x 16 mm x 2.6 mm, the smallest integrated heading module
● Lowest power RTK&heading module (100mW peak power) in the world
● Supports dual mode operation (base station/rover mode)
● Full constellations and multiple frequencies
