IM23

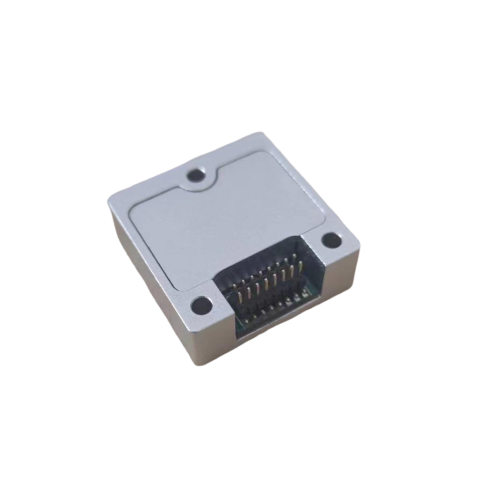

IM23 is a miniaturized (25*25*9.1 mm) inertial measurement unit (IMU) and controller designed by Feyman Technology. It is built on the foundation of our popular IM19 module which has been successfully deployed in various industrial applications with over 100K units (by 2023) in active use. IM23 is an upgraded version of IM19 and it is designed to meet the demands of harshest industrial application environment.
With built-in 9-axis sensor and a powerful Cortex M7 processor running at 480MHz with double precision support, it enables diverse applications such as IMU measurement, AHRS, tilt surveys, agriculture and machine control, and integrated navigation. IM23 has been factory calibrated in the whole temperature range to enable reliable operation under a wide range of industrial applications.

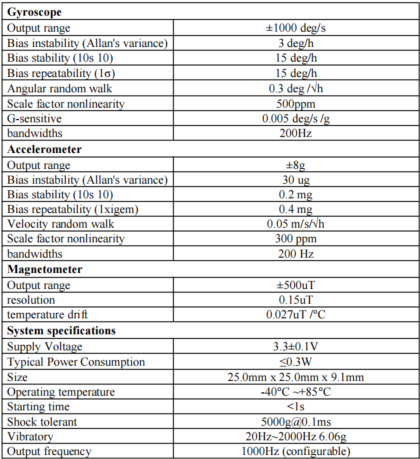

● 3-axis gyroscope, 3-axis accelerometer and 3-axis magnetometer ● Temperature compensation and calibration ● Miniaturization, adapting to a variety of complex scenarios ● Shock-resistant and highly reliable ● Multi-role function   Compass   Tilt monitoring   AHRS   RTK tilt surveys   Machine control   Integrated navigation (with GNSS, odometer, vision etc)
