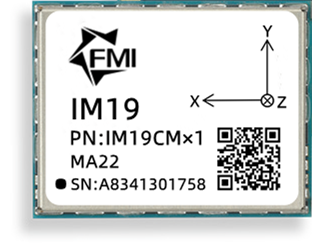

With worldwide mass adoption of this IM19 module, we are proud of its unparalleled performance in terms of both accuracy (better than 10mm 95%), speed (1s initialization 95%), and reliability (consistent). The technology is protected under international patents as FMI was the first to have invented the self-calibration technique, which greatly improved manufacturing efficiency and final system performance. Tilt survey accuracy with IM19 is proven to be better than traditional RTK with an average bubble level.
RTK tilt surveys
● Extreme fast initializations, within 1~2s (95%)
● Accuracy 1 cm up to 30° tilt angle, 2 cm up to 60°
● Very fast factory calibration of finished product
● Leveling pole calibration to gain highest accuracy
● International patent protection for integrators
Machine control
● Fast initialization in 3 seconds, automatic detection of forward/reverse motion
● Long term heading stability
● 0.05° attitude accuracy, 0.5° heading accuracy
● 100Hz high frequency positioning and attitude output
● Support dual antenna positioning fusion
Integrated navigation
● Self-calibration without requiring user setting installation parameters
● Dead reckoning accuracy: 1%* driving distance
● Long term heading stability
● Automatic detection of forward/reverse motion
